Product Description

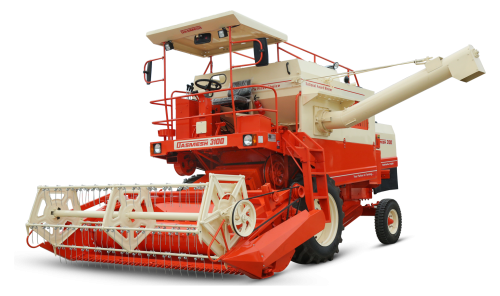

DASMESH Combine Harvesters Are Superior Harvesting Machines That Are Enabled To Perform In Tough Geographical Conditions. DASMESH Combine Harvesters Are Known For Their Remarkable Combination Of Strength, Style, Performance And Efficiency, Regardless Of Terrain Or Crop Conditions.
Technical Specification
| Specification |
Value |
| Chassis |
36"(914.4 mm) |
| Straw Walker |
4 No.s |
Cutting Mechanism
| Cutter Bar WIdth |
10Feet (3048 mm) |
| Cutting Height |
30-1290mm |
|
Engine
| Power |
76 HP @ 2200rpm |
| Model |
ALU W04d |
| No of Cylinder |
Four |
| Air Cleaner |
Dry Type |
| Cooling System |
Water Cooled |
| Clutch System |
Single, Heavy Duty Dry Clutch |
| Dia(mm) |
310 (mm) |
| Transmission |
3 Forward & 1 Reverse (Double Lever) |
|
Threshing System
| Thresher Width |
887mm |
| Diameter |
510 mm |
|
Range Of Speed
| Maximum |
870@1850 rpm |
| Minimum |
680@1850 rpm |
|
Concave
|
Range Of Clearance (Wheat)
|
Range Of Clearance (Paddy)
|
Cleaning Sieves
| Top Sieve Effective Area |
1.120m³ |
| Bottom Sieve Effective Area |
0.960m³ |
|
Tyre
| Front |
14.9x28.12PR |
| Rear |
7.50x16.8PR |
|
Grain Tank Capacity
| Paddy |
1000Kg. |
| Wheat |
1100Kg. |
| Diesel Tank |
200 Liter |
|
Overall Dimensions (Transportation)
| Length |
9775 mm |
| Width |
2530 mm |
| Height |
3170 mm |
|
Overall Dimensions (Working)
| Length |
6960 mm |
| Width |
3400 mm |
| Height |
3170 mm |
|
Cutting Capacity Approx.
| Wheat |
1.75 Acre/Hours |
| Paddy |
1.25 Acre/Hours |
|
Note: As per our policy of continuous development, specifications and performance can be changed without any prior notice.
Product Features
- Available In 4 Straw Walkers.
- 4x4 Available On Order.
- Best In Segment Grain Unloading Speed.
- Under Body Diesel Tank.
- Extra Size Sieves For Better Cleaning Area.
Maintenance & Servicing Tips
Why Daily Maintenance?
DASMESH is known for building agricultural equipment that are easy to Service and Maintain and the DASMESH 966 lives up to that reputation. The simplicity and accessibility of DASMESH 966 Rotavator allows operators to quickly perform daily maintenance tasks and adjustments. Cap covered Oiling points are provided for lubrication of the DASMESH 966’s critical components and help reduce downtime.
Maintenance Before Harvesting Operation
Daily Servicing
