Product Description

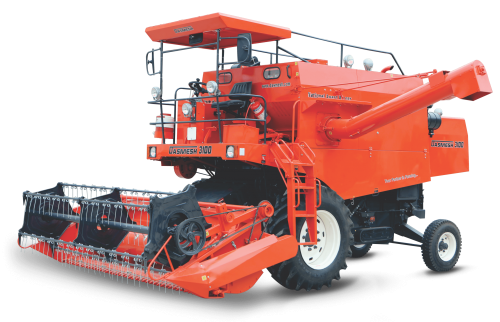

Dasmesh 3100 Self Propelled Mini Combine Harvester Is A Very Usefull Harvesting Machine For Harvesting Small And Medium Size Fields. It Is Available In 4 Straw Walkers And It Has Extra Size Sieves For Better Cleaning Of Your Grains.
Technical Specification
Specification |
Value |
Chassis |
1041 mm |
Straw Walker |
5 Nos |
Cutting Mechanism
Cutter Bar |
2743.2 mm (9 Feet) |
Cutting Height |
30-1290mm |
|
Engine
make |
ashok leyland / kirloskar |
model |
H6ETIC3RD22 BS-||| |
type |
four stroke, water cooled, direct ingection diesel engine |
power |
101 H.P.@2200 rpm |
|
Threshing System
Thresher Width |
1257 mm |
Diameter |
606 mm |
Thresher Width |
887mm |
range of speed |
562 to 960 rpm |
|
Range Of Speed
Minimum |
680@1800rpm |
Maximum |
785@1850rpm |
|
Concave
Concave Width |
1270 mm for paddy |
range of clearance |
for wheat 8 to 46 mm |
front |
18 to 30 mm |
rear |
7 to 12 mm |
clute plate |
heavy duty dry type |
diesel tank capacity |
360 ltrs. |
|
Range Of Clearance (Wheat)
|
Range Of Clearance (Paddy)
|
Cleaning Sieves
Top Sieve Effective Area |
1.076m² |
Bottom Sieve Effective Area |
0.804m² |
|
Tyre
Front |
14.9x28.12PR |
Rear |
9.00-16 |
|
Grain Tank Capacity
Paddy |
900Kg. |
Wheat |
1000Kg. |
Diesel Tank |
200 Liter |
|
Overall Dimensions (Transportation)
height |
3748 mm |
Length |
12270 mm |
Width |
3130 mm |
weight |
900kg. |
|
Overall Dimensions (Working)
Length |
8300 mm |
Width |
4740 mm |
Height |
3170 mm |
|
Cutting Capacity Approx.
Wheat |
1.5 Acre/Hours |
Paddy |
1.0 Arce/Hours |
|
Note: As per our policy of continuous development, specifications and performance can be changed without any prior notice.
Maintenance & Servicing Tips
Why Daily Maintenance?
DASMESH is known for building agricultural equipment that are easy to Service and Maintain and the DASMESH 966 lives up to that reputation. The simplicity and accessibility of DASMESH 966 Rotavator allows operators to quickly perform daily maintenance tasks and adjustments. Cap covered Oiling points are provided for lubrication of the DASMESH 966’s critical components and help reduce downtime.
Maintenance Before Harvesting Operation
Daily Servicing
