Product Description

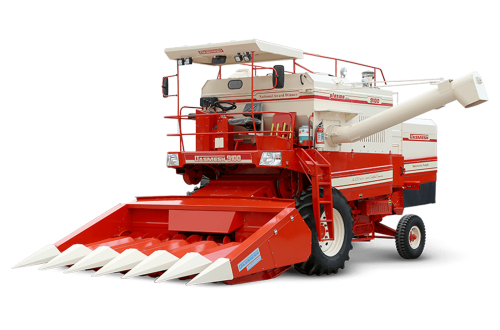

Featuring A High-speed Single Gearbox, Big Diesel Tank And Ashok Leyland Make, Our Dasmesh 9100 Maize Combine Harvester Is Definitely One Of Its Kinds. It Has Been Made Keeping In Mind Your Harvesting Needs And Our Focus Is To Ensure That You Get A Device That Lasts You For Years. All Of This For A Nominal Rate And We Will Send It You In The Shortest Possible Time.
Technical Specification
Specification |
Value |
Chassis |
51 " (1295 mm) |
Straw Walker |
5 NOs. |
Cutting Mechanism
cutter bar width |
4300 mm (14 feet) |
cutter hight |
55 - 120 mm |
|
Engine
make |
ashok leyland / kirloskar |
model |
h6etic3rd22 bs-||| |
type |
four stroke,water cooled,direct ingection diesel engine |
power |
101 h.p.@2200 rpm |
|
Threshing System
thresher width |
1257 mm |
diameter |
606 mm |
range of speed |
562 to 960 rpm |
|
Concave
concava witdth |
1257 mm forpaddy |
range of clearance |
for wheat 8 to 46 mm |
front |
18 to 30 mm |
rear |
7 to 12 mm |
clute plate |
heavy duty dry type |
diameter |
360 ltrs. |
|
Tyre
front |
18.4 -30 |
rear |
9.00-16 |
|
Overall Dimensions (Transportation)
lenght |
122700 mm |
width |
3130 mm |
height |
3748 mm |
weight |
900kg. |
|
Overall Dimensions (Working)
lenght |
8300 mm |
width |
4740 mm |
height |
3748 mm |
|
Cutting Capacity Approx.
paddy |
3.0 acres per hour. |
wheat |
4.5 acres per hour. |
maize |
2.0 acres per hour. |
|
Note: As per our policy of continuous development, specifications and performance can be changed without any prior notice.
Maintenance & Servicing Tips
Why Daily Maintenance?
DASMESH is known for building agricultural equipment that are easy to Service and Maintain and the DASMESH 966 lives up to that reputation. The simplicity and accessibility of DASMESH 966 Rotavator allows operators to quickly perform daily maintenance tasks and adjustments. Cap covered Oiling points are provided for lubrication of the DASMESH 966’s critical components and help reduce downtime.
Maintenance Before Harvesting Operation
Daily Servicing
